HEX11WPW-TX

HDMI Wall Plate HDBaseT™ Trans

Available Colours
White
  • Advanced HDBaseT™ technology
  • Supports 4K UHD video up to 40m
  • Extends HDMI at 1080p
  • Supports all known HDMI audio forma
  • Supports 12V-48V PoC
  • Bi-directional RS-232 pass-through
  • Supports IR pass-through
  • White magnetic faceplate surround
  • RRP: $211.01

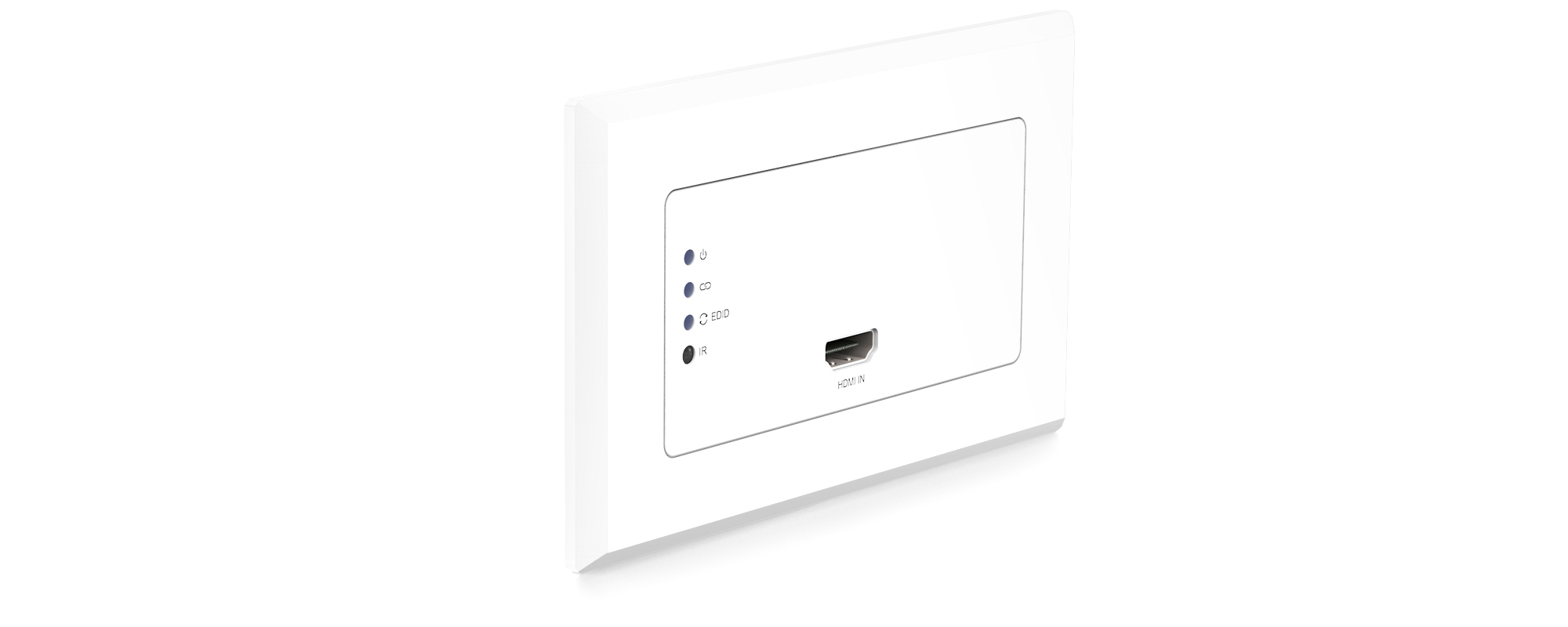

Our HEX11WPW-TX HDMI wall plate HDBaseT™ transmitter is a 4K solution that extends HDMI up to 70m 1080p (40m 4K). The HEX11WPW-TX has been designed to work with all Blustream HDBaseT™ receiver solutions, be installed in both UK and European backboxes and can be powered locally or from compatible Blustream HDBaseT™ products.

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products
• Bi-directional RS-232 pass-through
• Supports IR pass-through to HDBaseT™ device
• Compatible with all Blustream HDBaseT™ receiver / matrix products*
• White magnetic faceplate surround allowing for both UK & EU backbox compatibility
• Smart EDID function automatically limits EDID to within HDBaseT™ specification to improve compatibility
• HDCP 2.2 support

*Technical performance is subject to the features supported on the connected HDBaseT™ device.
