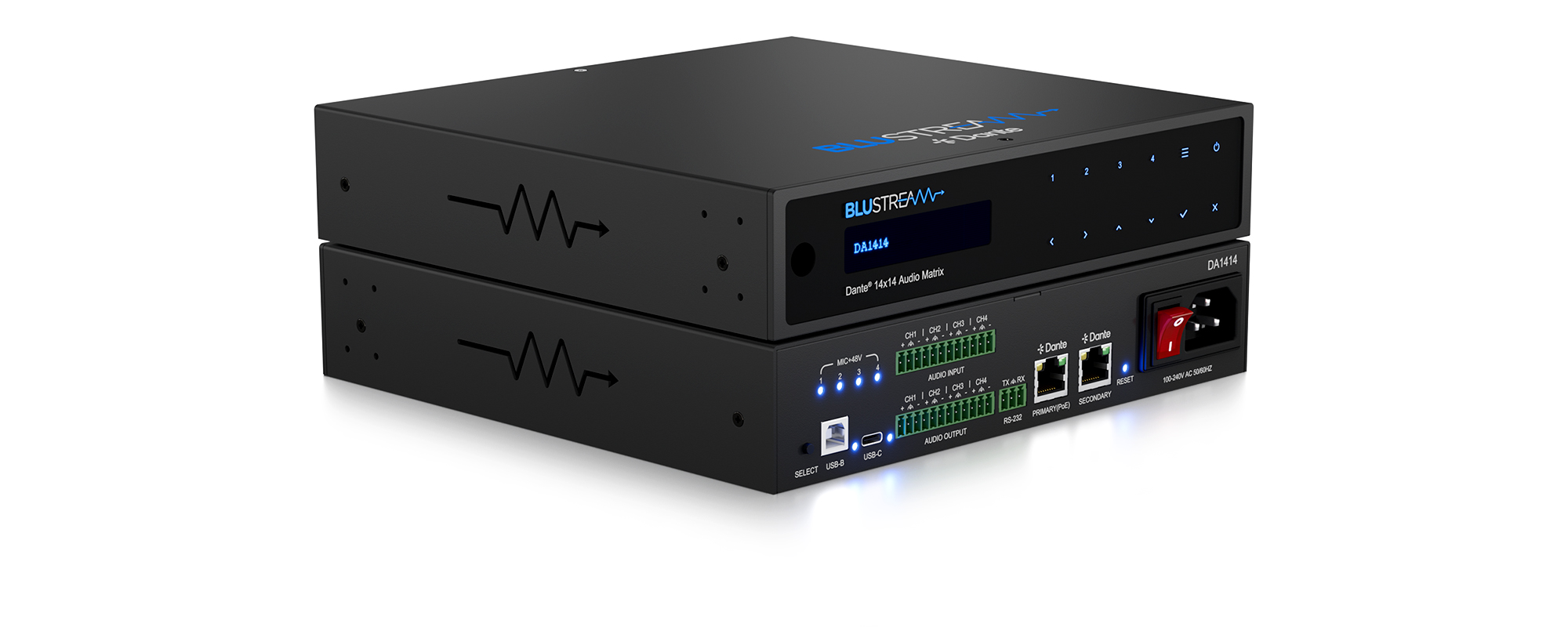

The DA1414 is a sophisticated PoE powered audio matrix designed for efficient distribution of multiple audio sources across a multizone setup. It offers advanced audio processing features such as independent routing of mono audio signals, volume control, balance adjustments, up to 8-band parametric equalizer including high/low shelf and high/low pass filtering on the input and output stages Equipped with 8x Dante, 4x balanced/unbalanced analogue, and 2x USB audio inputs, it supports output to 8x Dante, 4x balanced/ unbalanced analogue, and 2x USB channels. The system includes API switching functionality, allowing users to route Dante channels via third-party control platforms, bypassing Dante Controller or Domain Manager. The analogue inputs also feature selectable 48V phantom power for microphone or line-level connections. Additionally, USB-C / USB-B connectivity options ensure maximum flexibility, catering to diverse system designs. The DA1414 offers an advanced yet cost-effective solution for seamlessly routing and controlling audio signals within both commercial and residential environments, regardless of the source type.
• 14 x 14 audio Matrix with Dante®, balanced / unbalanced analogue and USB audio
• Supports separation (mono) of all audio channels and independent control resulting in switching of up to 14x14 audio feeds
• Analogue audio inputs support both balanced and unbalanced audio + MIC line level signals
• MIC line level supports 48V Phantom power
• Selectable USB audio between USB-C and USB Type-B inputs with USB audio class 2.0 support
• Supports: volume, balance and up to 8 band parametric equaliser control with high/low shelf and high/low pass filter, per input and output
• Supports 48kHz 24-bit sampling rate for A/D and D/A conversion
• Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
• Features 2x Dante® LAN ports supporting network redundancy
• Supports AES67 RTP audio transport
• Supports power via PoE+ (Class 4 IEEE 802.3at) on Dante® Primary LAN connection or local power supply
• Control via front panel, RS-232, TCP/IP and web-GUI
• 1U design for 19” rack mount integration - Rack mounting kit included
