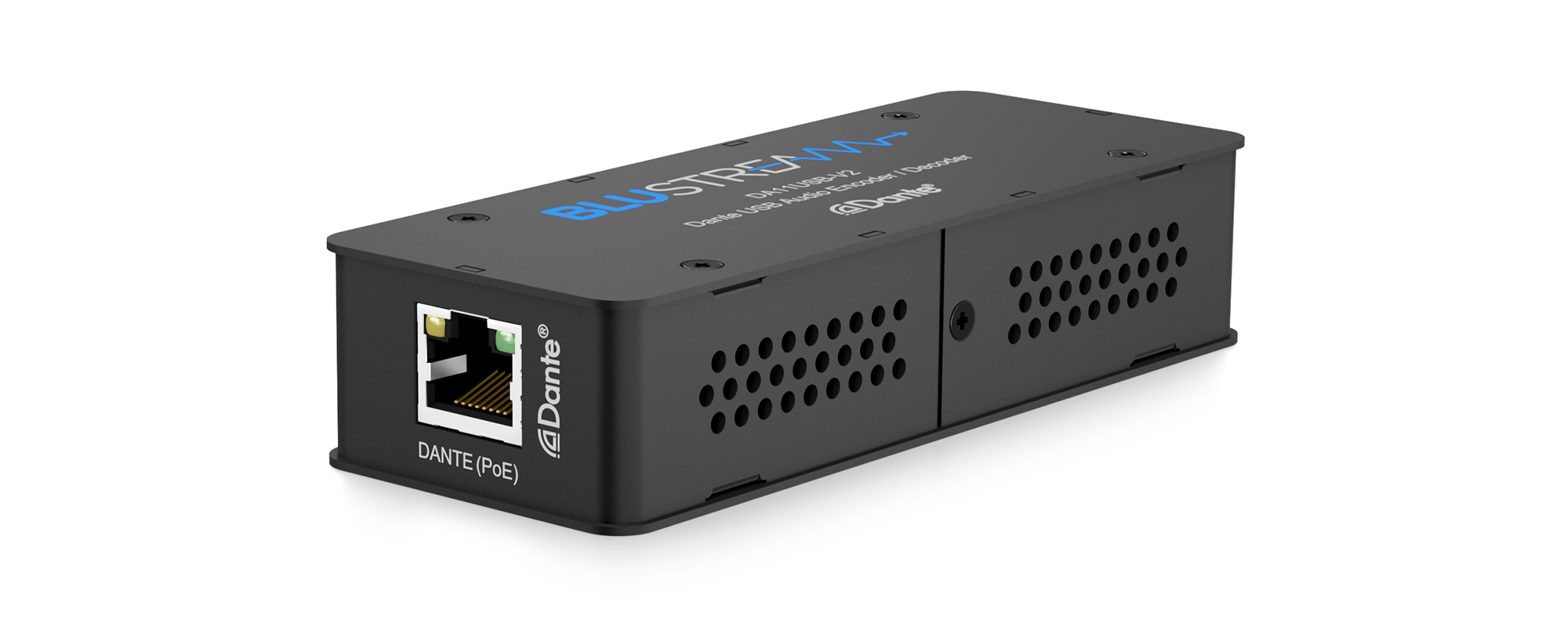

Our DA11USB-V2 has been designed to both encode 2ch USB audio to a Dante® digital signal, and decode a Dante® digital signal to 2ch USB audio. The DA11USB-V2 features both USB Type-B and USB-C connections selectable via local dip-switch and is a plug & play device that is powered using PoE (Power Over Ethernet) or via 5V from the USB device. The DA11USB-V2 also supports AES67 RTP audio transport.
• Encodes 2ch USB audio to Dante® digital signal
• Decodes a Dante® digital signal to USB audio
• Selectable USB audio between USB Type-B and USB-C inputs
• Compliant with USB Audio Device Class Specification V2.0
• USB Audio Supports 44.1, 48, 88.2, 96, 176.4 & 192 KHz sample rates @ 16, 24 & 32 Bit
• Dante® Audio Supports 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
• Supports power via 5V USB for when network switch does not support PoE
